Designed for real life applications, the pure white 6000 K CCT of the Martin MAC 500 offers the most comprehensive spectrum an edge LED moving head. High CRI, TM-30 and R9 values ensure that skin tones, costumes, set pieces, and colors naturally. Carefully chosen LED refresh rates ensure flicker-free operation in camera applications.

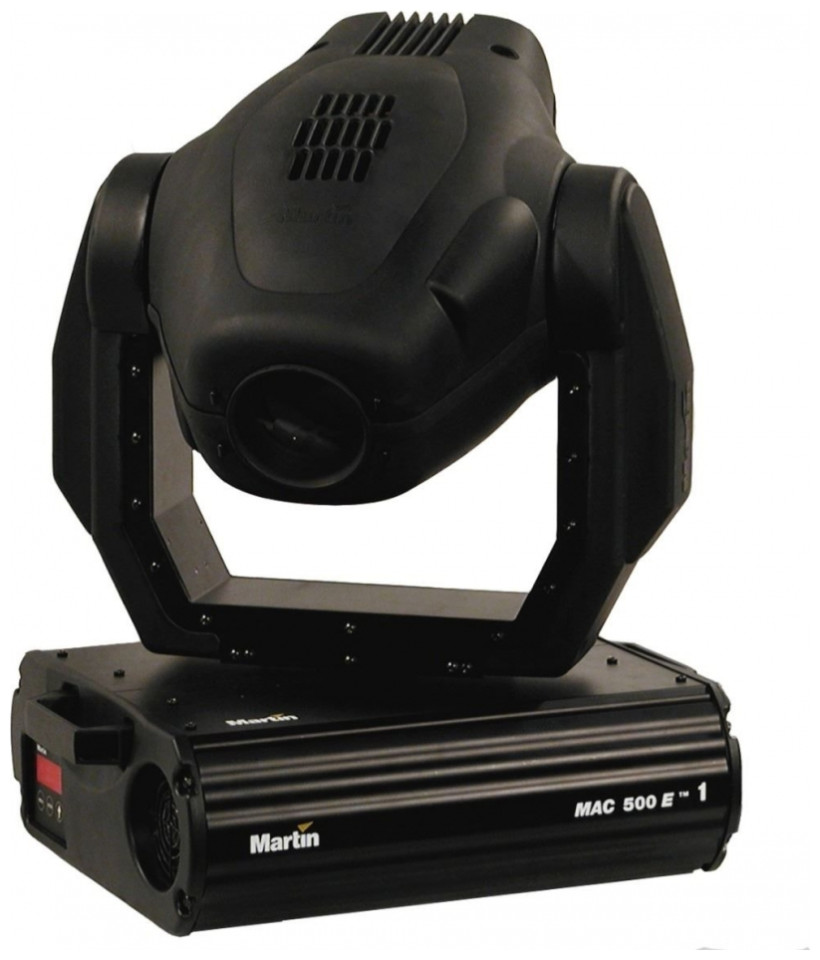

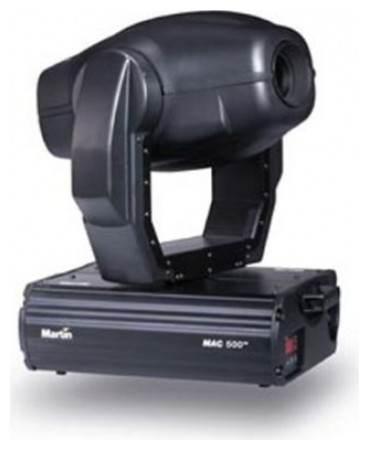

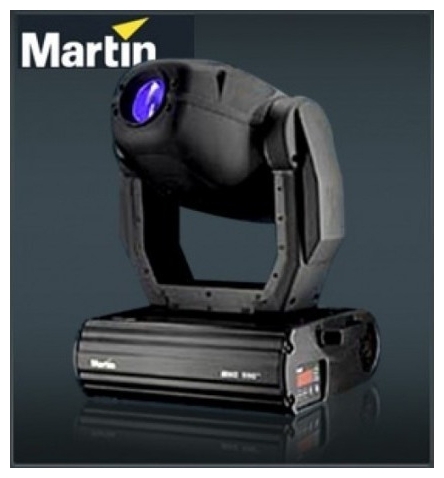

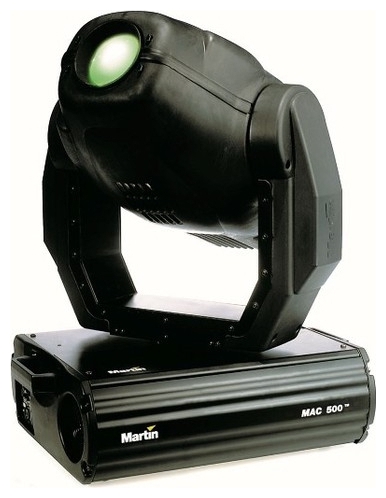

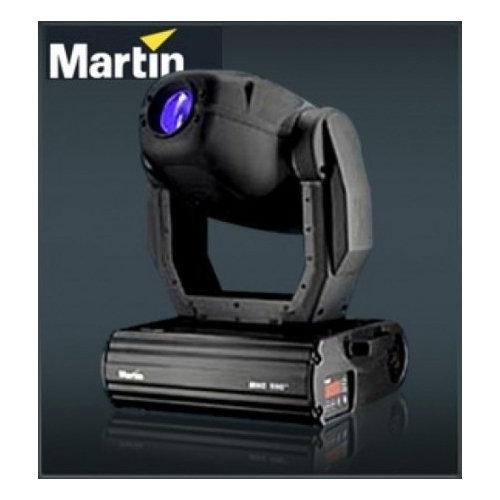

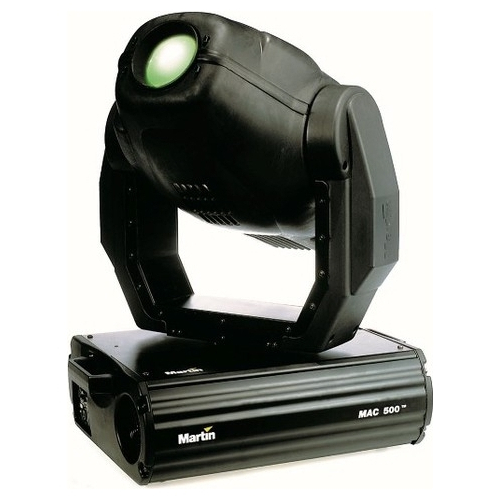

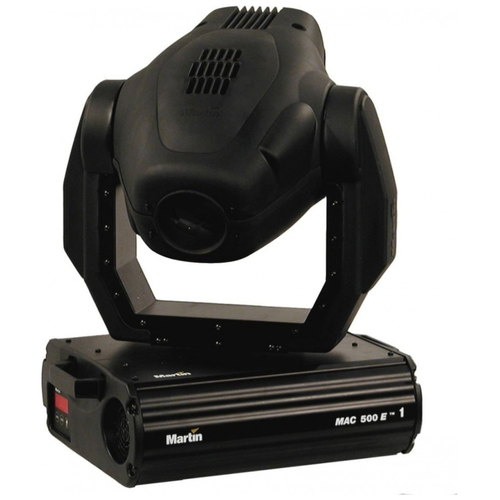

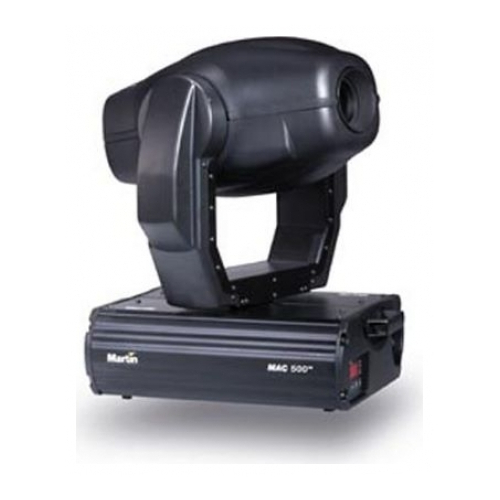

Lighting Design has no limits with the Martin MAC 500. The MAC 500 is a reliable and award-winning profile spot luminaire, which projects a bright beam with a razor-sharp hard-edge.
LAMP
Philips MSR 575/2 (575W, 7200K, 1000hour life) lamp OUTPUT
9,000 lumens OPTICS
Anti-reflection coated achromatic lenses
Ellipsoidal aluminium reflector COLOUR
2 motorised colour wheels
14 dichroic colour filters
4 dichroic CTC filters
9 replaceable colour slots GOBOS
2 motorised gobo wheels
5 interchangeable 28mm rotating gobos
9 replaceable 28mm fixed metal gobos BEAM EFFECTS
Variable strobe up to 23Hz
Motorised iris
Rotating 3-facet prism DIMMER/SHUTTER/STROBE
Combined mechanical dimmer/shutter
Full range, smooth microstep-driven dimming FOCUS
Motorised focus 2m to infinity
17° maximum focused beam angle PAN/TILT
Pan: 440° in 0.013° steps
Tilt: 306° in 0.007° steps
Automatic pan/tilt correction feedback system POWER REQUIREMENTS
3.4A @ 230 VAC
Start Up: 6.2A
XLR: 3 Pin COOLING
Theatre proven silent fan cooling NUMBER OF CHANNELS
12, 14 or 16 MEASUREMENTS
H x W x D: 673 x 495 x 447mm (Size without clamps) WEIGHT
32.8 KG (with magnetic ballast)
Mode 1 – 12 Channel 8-Bit
Pan/Tilt
1. Strobe
2. Intensity
3. Colour 1
4. Colour 2
5. Gobo 1
6. Gobo1 rotate
7. Gobo 2
8. Focus
9. Iris
10. Prism
11. Pan
12. Tilt Mode 2 – 14 Channel 16-Bit
Pan/Tilt
1. Strobe
2. Intensity
3. Colour 1
4. Colour 2
5. Gobo 1
6. Gobo 1 Rotate
7. Gobo 2
8. Focus
9. Iris
10. Prism
11. Pan
12. Fine Pan
13. Tilt
14. Fine Tilt Mode 3 – 14 Channel 8-Bit
Pan/Tilt
1. Strobe
2. Intensity
3. Colour 1
4. Colour 2
5. Gobo 1
6. Gobo 1 Rotate
7. Gobo 2
8. Focus
9. Iris
10. Prism
11. Pan
12. Tilt
13. Pan/Tilt Speed
14. Control/Macro
Mode 4 – 16 Channel 16-Bit
Pan Tilt
1. Strobe
2. Intensity
3. Colour 1
4. Colour 2
5. Gobo 1
6. Gobo 1 Rotate
7. Gobo 2
8. Focus
9. Iris
10. Prism
11. Pan
12. Fine Pan
13. Tilt
14. Fine Tilt
15. Speed
16. Control/Macro
